REMOTE PANEL
Remote panels are designed to monitoring remotely ups informations like operation mode, voltage, current etc.
BATTERY TEMPERATURE SENSOR
Battery temperature sensor is used to change batteries according to battery temperature variation. UAOK-003-01
PARALLELING KIT
A parallel system may be designed by connecting outputs of multiple uninterruptible power supplies to a common load switch. A parallel system will safely supply loads that are overly sensitive against electric power outages. In a parallel system, when any of UPSs malfunction and become offline, other UPSs continue to supply the load, thereby preventing any interruption with supply to load.
COLD START
When there is no utility power and the UPS is off, the cold start feature will switch the UPS and connected equipment onto battery power.
|

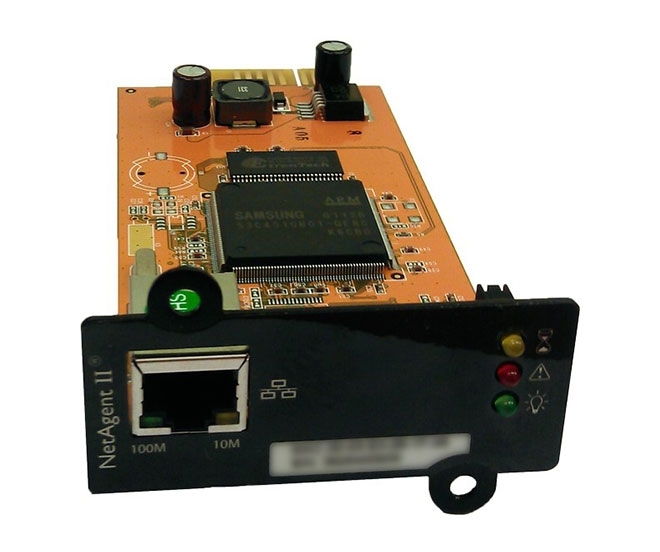

TECHNICIAL SPECIFICATIONS
|
|
|
CPU |
ARM 80 MHz 32 Bit |
|
System Clock |
50MHz/80MHz |
|
Flash Memory |
1 MB |
|
SDRAM |
1MB |
|
Multi-Language Web |
Yes |
|
LED |
2 piece |
|
Ethernet Data Volume |
808 KB/sn |
|
Ethernet Latency |
0,8 ms |
|
Operating Voltage |
3,3 Volt |
|
LAN Interface |
10M/100M UTP |
|
Connector |
4 pin wafer |
|
LAN Protocol |
TCP/IP, HTTP, SMTP, SNTP, DHCP, Telnet, BOOTP, DNS, DDNS, PPPOE, Wap, PDA Browser, SNMP RFC 1628 MIB, PPC MIB, MODBUS TCP |
|
USB 2.0 |
1 piece |
|
RS485 |
1 piece |
|
Size |
|
|
Weight |
|
